MATERIALS High-performance Film
Embossed Double Sided Adhesive Tape│
Application
- To be fixed against the various parts or sheets in the mobile product such as graphite sheet.
- To be fixed against the flat panel display module.

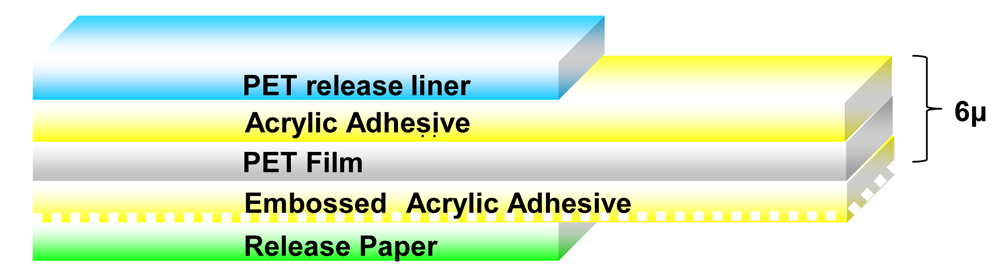

Structure
Feature
- Quite thin adhesive tape which total thickness is 6μm.
- Embossed adhesive can apply to adherent with deflating air bubble.
- High rework capability.
- The adhesive keeps the embossed form under high temperature and humidity circumstances.
Property
Item | Unit | Object | Embossed side | PET liner side |
Adhesive strength | N/25mm | Glass | 3.0 | 6.4 |
Ball tackiness | Ball No. | - | <2 | <2 |
Holding force | mm | - | No Slip | No Slip |
* The table shows typical data and can not be deemed as guaranteed value.
