MATERIALS High-performance Film
Ultrathin Adhesive Tape(Double-sided)│
Feature
- An adhesive with strong adhesiveness is used, making it possible to fix the tape to a variety of objects.
- A hard adhesive with excellent punching properties is used.
- With a low tack surface re-workability in short period is excellent.
Application
- Fixing of various components inside mobile devices such as smartphones, car navigation systems, tablet devices and remote controls, liquid crystal displays (LCD), organic light emitting displays (OLED) and other electronic devices
- Lamination of graphite sheets, magnetic sheets

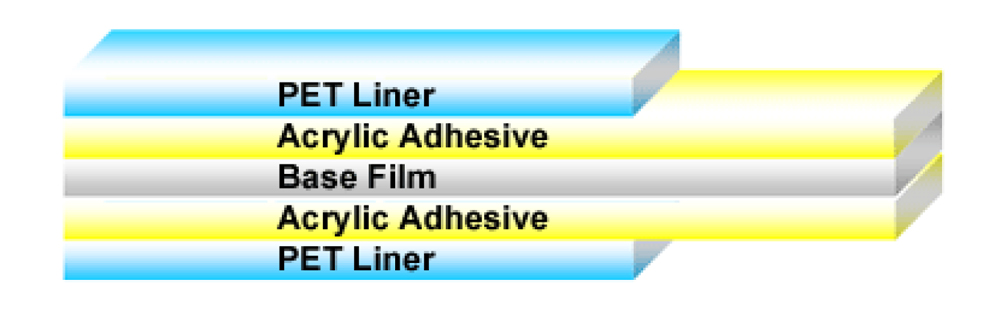

Construction
Property
| ISR Grade | MK3G-UT | MK6G | MK10GM | BMK6G | BMK10G | |
| Base Film Thickness | Urethane 1μm | PET 2μm | PET 2μm | PET 2μm | Black PET 2μm | |
| Tape Thickness | 3μm | 6μm | 10μm | 6μm | 10μm | |
| Liner Thickness ※1 | 38μm | 25μm | 25μm | 25μm | 25μm | |
| Adhesive Thickness ※2 | 1μm | 2μm | 4μm | 2μm | 4μm | |
| Adhesive Color | transparency | transparency | transparency | Black | Black | |
| Adhesion (mN/25mm) | SUS | 3.0 | 7.0 | 11.0 | 5.0 | 7.0 |
| Glass | 2.0 | 8.7 | 8.4 | 5.0 | 6.5 | |
| PC | 2.5 | 7.7 | 8.8 | 5.5 | 7.5 | |
| Ball Tack (No.) | ≦2 | ≦2 | ≦2 | ≦2 | ≦2 | |
| Holding Power (mm) ※3 | 0 | 0 | 0 | 0 | 0 | |
※ 1. ※ 2. Low peel strength and high peel strength are the same thickness. Thickness of the separator can be adjusted as required.
※ 3. Measured the deviated distance under condition of 1kg load at 40℃×1hr.
Data in these materials are measured values and do not constitute guaranteed values.
